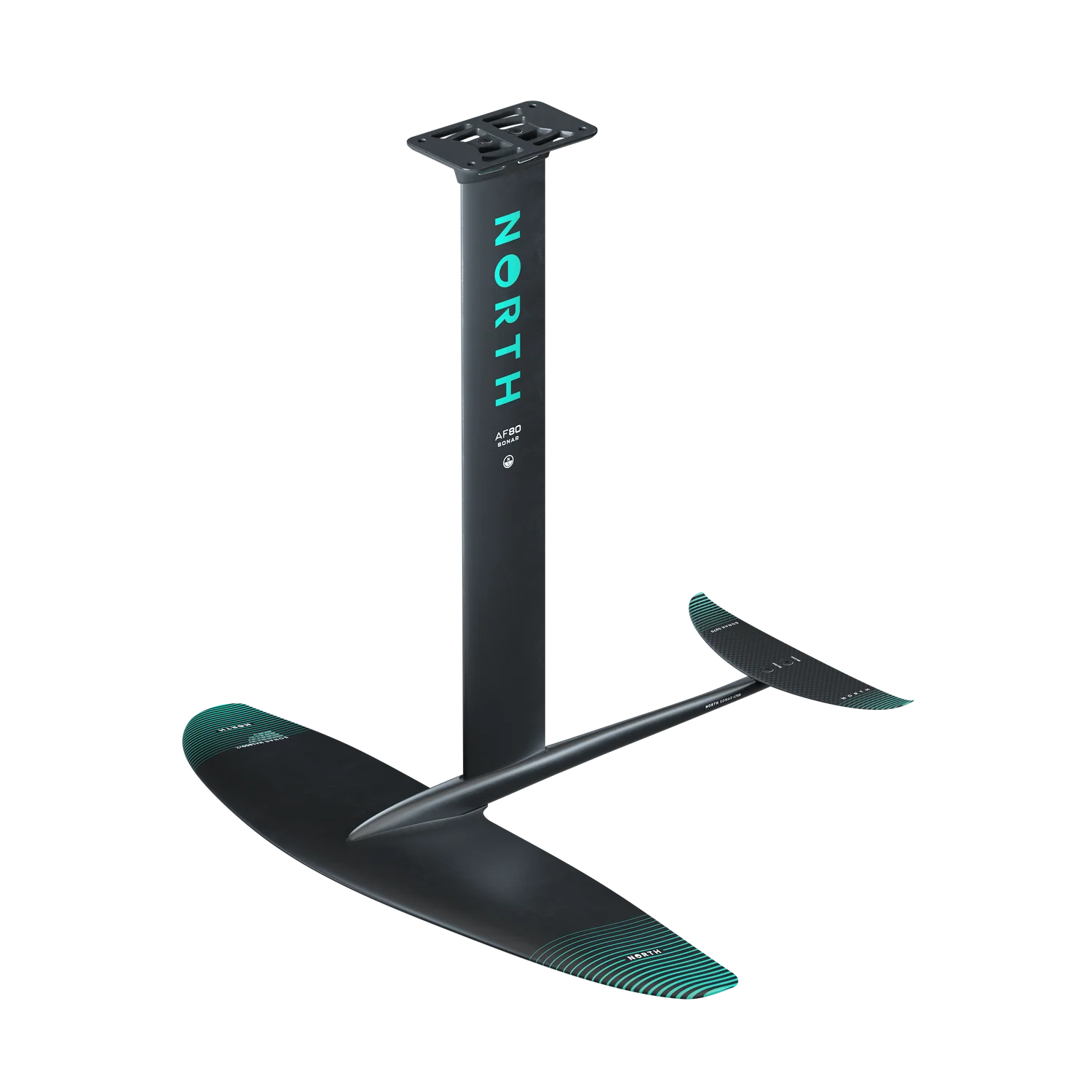

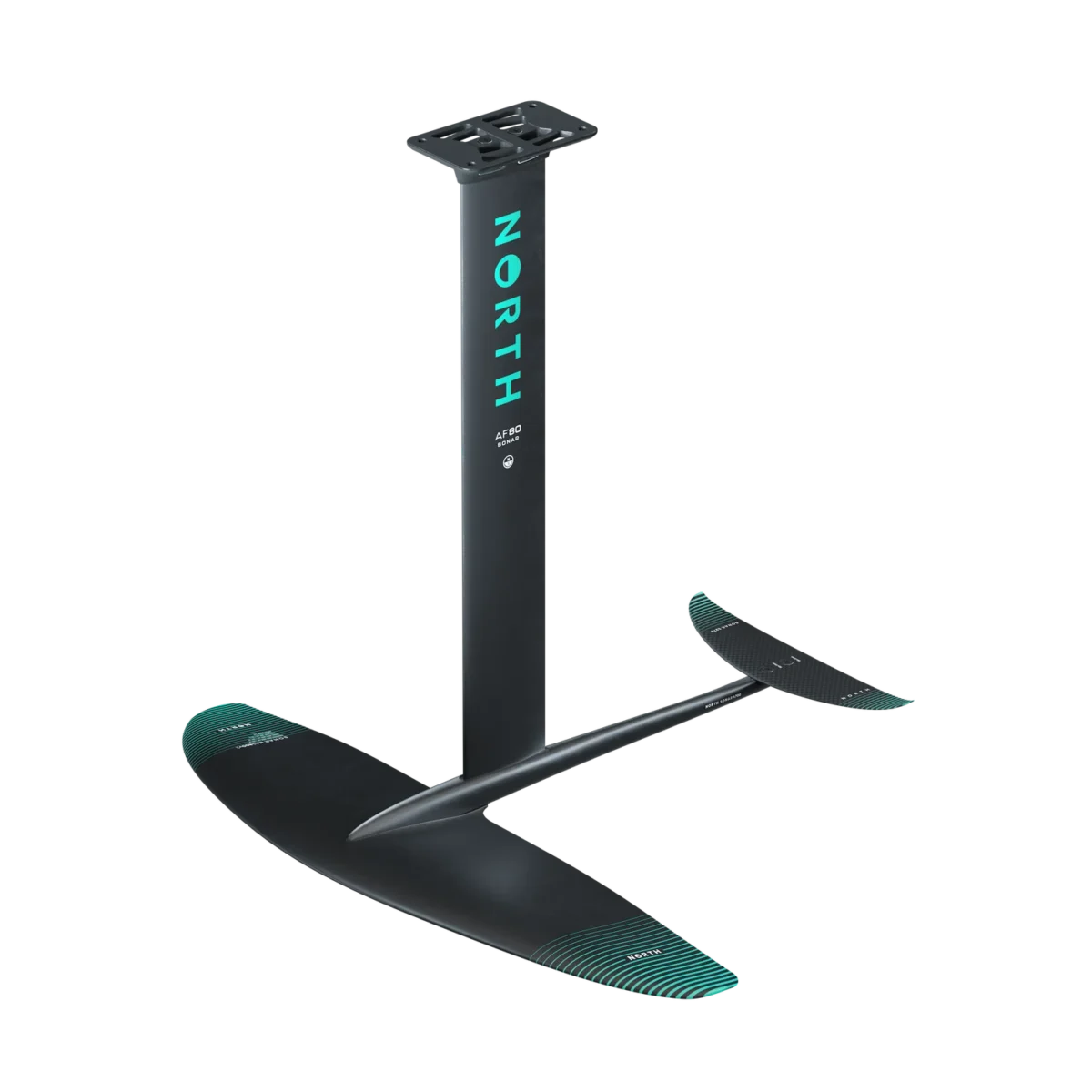

North Sonar Prime Edition 2025
Aluminium & E-Glass Foil Set
Versatile | Durable | Accessible
The North Sonar Prime Edition 2025 is your all-in-one platform to fast-track your foiling progression across every discipline — from winging and kite foiling to prone, wake, and downwind. Whether you’re just getting started or stepping up your skills, the Prime Edition is engineered to make your sessions easier, smoother, and more confidence-inspiring from day one.
This modular, fully interchangeable system features the MAv2 Prime Mid Aspect Front Wing (available in 1200 to 2400 sizes), S270 or S320 Stabilizer, A700 Fuselage, AF80 Mast, and AF Board Adaptor — all compatible with North’s complete foil range. Built using the same molds as our premium carbon wings, the E-Glass MAv2 Wings deliver high performance and strength with enhanced impact resistance at a more accessible price.
The efficient mid-aspect ratio design ensures pitch stability and early lift across a wide speed range. From first flights to carving turns, you’ll benefit from responsive handling and a stable ride. Every set comes packed in a durable, padded travel case with marine grease, Torx T40 tool, and custom screw packs tailored to each wing size.
What’s Included with Each Prime Edition:
| Edition | Front Wing | Stab | Fuselage | Mast | Toolkit | Novice Rider Weight (kg) | Advanced Rider Weight (kg) |
|---|---|---|---|---|---|---|---|
| PE 1200 | MA1200v2 + Cover | S270 + Cover | A700 | AF80 | T40 Tool, Marine Grease, Packs A, B, C, F (3x M8x30) | <65 kg | <85 kg |
| PE 1500 | MA1500v2 + Cover | S270 + Cover | A700 | AF80 | T40 Tool, Marine Grease, Packs A, B, C, E (3x M8x33) | 65–75 kg | 85–100 kg |
| PE 1850 | MA1850v2 + Cover | S270 + Cover | A700 | AF80 | T40 Tool, Marine Grease, Packs A, B, C, G (3x M8x35) | 75–85 kg | >100 kg |
| PE 2100 | MA2100v2 + Cover | S270 + Cover | A700 | AF80 | T40 Tool, Marine Grease, Packs A, B, C, G (3x M8x35) | 85–100 kg | – |
| PE 2400 | MA2400v2 + Cover | S320 + Cover | A700 | AF80 | T40 Tool, Marine Grease, Packs A, B, C, I (3x M8x40) | >100 kg | – |
Rider Guidelines:
- Novice: Wind 15 knots + 5m wing
- Advanced: Wind 12 knots + 5m wing
Key Features
- Mid-aspect front wings ideal for progressing in all foil disciplines
- Lightweight pre-preg E-glass wings for durability and affordability
- Stable and controllable lift with lower stall speed
- Modular system compatible with all North foil components
- DropBox (165x90mm) foil mount compatible
- Marine grease and Torx T40 tool included
- Packed in a protective travel bag with labeled compartments
Materials:
- Pre-preg E-Glass MAv2 Wings
- Aluminium AF80 Mast
- SS316 Stainless Steel M8 Screws
What’s in the Box:
- Front Wing with padded cover
- Stabilizer with cover
- A700 Fuselage
- AF80 Mast
- AF Board Adaptor
- Screw Packs (A, B, C + Size-specific F, E, G or I)
- Marine Grease
- T40 Tool
- Padded Sonar Travel Bag
