KT Foiling Hardware Set – Aluminium & Carbon Options

The KT Foiling Hardware Set is a complete bolt and tuning kit designed to fit every connection point on your KT foil system. Available in two versions — Aluminium and Carbon — each kit is tailored to match the exact hardware requirements of your mast and fuselage type.

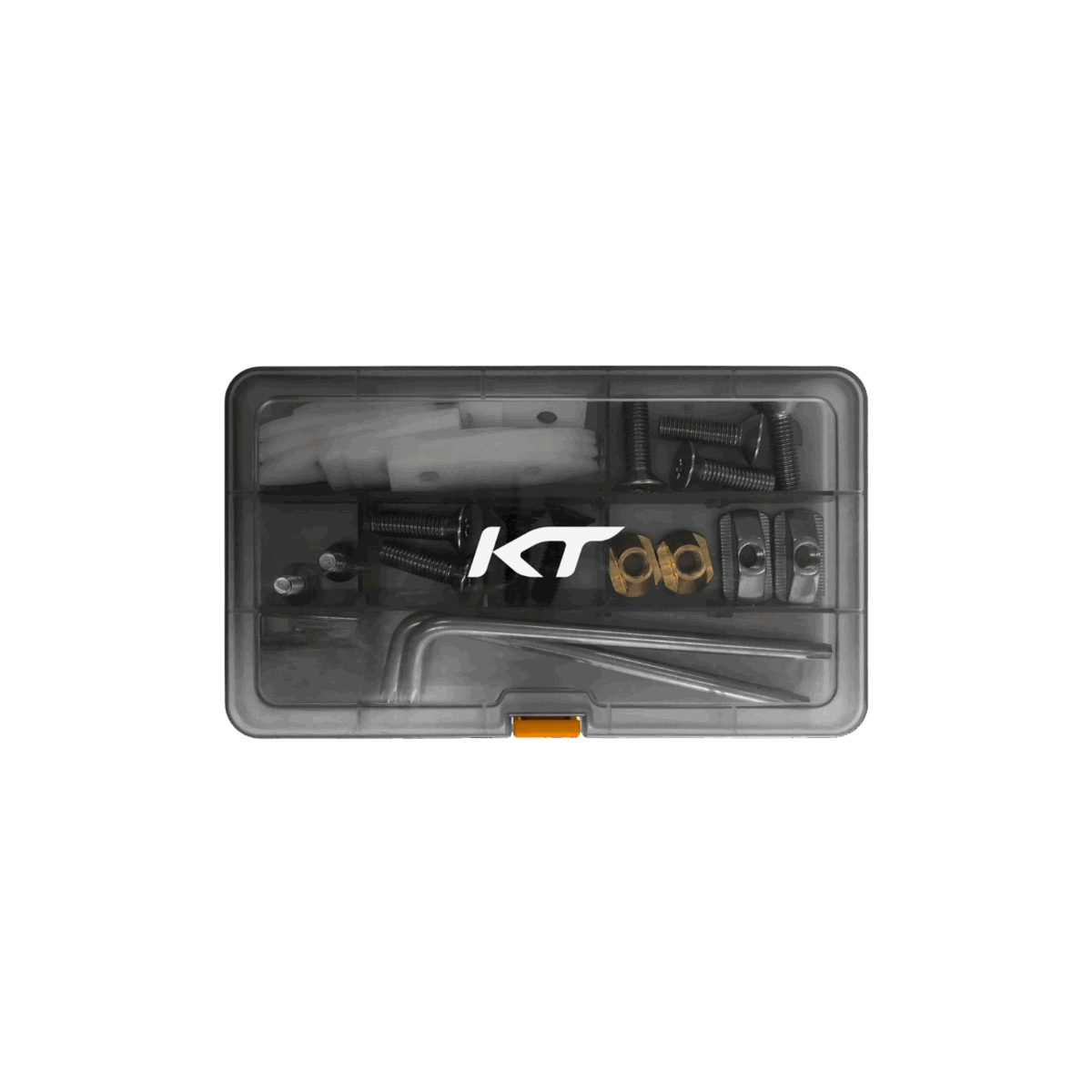

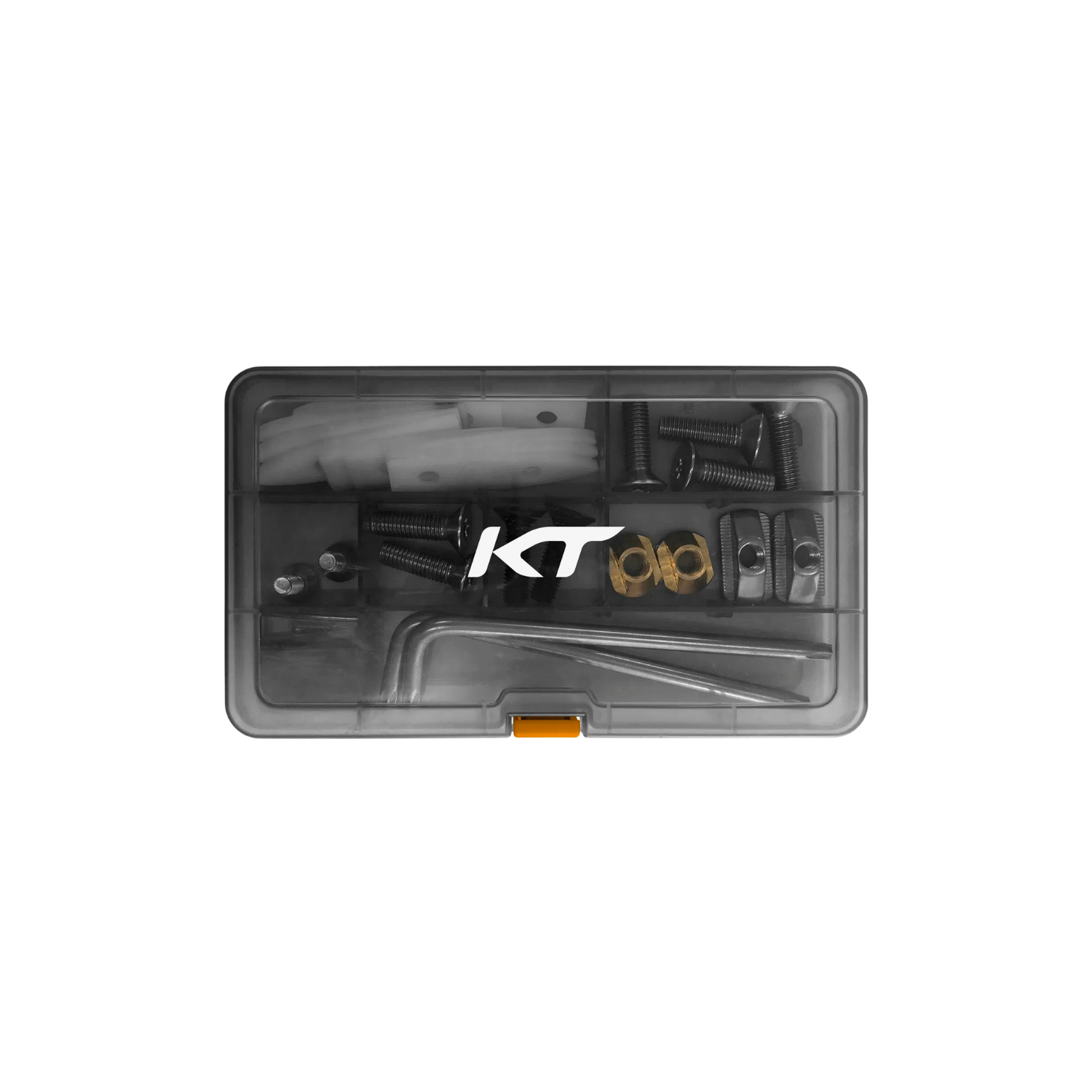

Both kits include a full collection of marine-grade bolts, T-nuts, rear-wing shims, a baseplate shim, Torx tools and a compact organized toolbox.
Whether you’re assembling a brand-new foil, replacing worn hardware or fine-tuning your setup, this kit ensures safe mounting, perfect alignment, and long-term reliability.

The Aluminium and Carbon kits share the same tuning accessories but differ in the main bolt combinations to correctly match the thickness and hardware configuration of each mast/fuselage system.

Which Version Do You Need?

Choose the Aluminium Hardware Set if:

You use a KT Aluminium Mast and Aluminium Fuselage.

Choose the Carbon Hardware Set if:

You use a KT Carbon Mast.

Both versions include everything needed — the only difference is the specific bolt lengths needed for each construction type.

What Each Hardware Set Includes

KT Aluminium Hardware Set – Contents

For Aluminium Mast & Aluminium Fuselage
Includes bolt lengths and connection hardware specifically matched to thicker aluminium interfaces.

• Board → Mast Plate:
  • 4 × M8-30 bolts
  • 4 × M8 T-nuts
• Mast → Fuselage:
  • 2 × M8-60 bolts
  • 2 × M8-35 bolts
  • 1 × M8-30 bolt
• Front Wing → Fuselage:
  • 2 × M8-24 bolts
• Stabilizer → Fuselage:
  • 2 × M6-20 bolts
• Full Rear-Wing Shim Set:
  • Range from –3º to +2.5º (12 shims total)
• 1º Baseplate Shim (mast-to-board angle tuning)
• Tools:
  • Torx T40
  • Torx T30
• Compact Hardware Toolbox

KT Carbon Hardware Set – Contents

For Carbon Mast & Carbon Fuselage
Includes the correct bolt lengths and configurations for the lighter, slimmer carbon interface.

• Board → Mast Plate:
  • 4 × M8-30 bolts
  • 4 × M8 T-nuts
• Mast → Fuselage:
  • 3 × M8-35 bolts
• Front Wing → Fuselage:
  • 2 × M8-24 bolts
• Stabilizer → Fuselage:
  • 2 × M6-20 bolts
• Full Rear-Wing Shim Set:
  • Range from –3º to +2.5º (12 shims total)
• 1º Baseplate Shim (mast-to-board angle tuning)
• Tools:
  • Torx T40
  • Torx T30
• Compact Hardware Toolbox

Why Riders Need This Kit

• All essential hardware in one organised pack
• Fully compatible with KT Foiling masts, fuselages and wings
• Correct bolt lengths eliminate risk of over-tightening or damage
• Full tuning control with rear-wing shims and baseplate shim
• Marine-grade fasteners built for saltwater durability
• Perfect for travel, foil schools, workshops, and maintenance
• Ensures safe, secure and vibration-free mounting
