KT Atlas Foil Wings

KT Foiling Atlas Foil Wings

Optimized for Surf and Downwind: Tailored for surf, wing, kite, or SUP foilers seeking ultimate freedom and performance.

The KT Atlas Foil Wing Series is engineered for riders chasing maximum glide, lift and smooth control across multiple foiling disciplines. With a high-camber profile and tuned hydrodynamics, the Atlas front and rear wings work together to create a fast, stable and highly responsive foil that excels in surf, wing and downwind conditions.

The Atlas front wing uses a rear-loaded camber and low-drag outline to deliver powerful early lift and impressive gliding efficiency while allowing you to ride a smaller surface area than traditional foils. This results in a foil that pumps effortlessly, accelerates quickly and holds clean, stable lines at a wide range of speeds.

Inflected wing tips on the front wing help the foil recover from breaches with minimal ventilation, keeping the ride controlled and predictable. Paired with the optimised Atlas stabilizer, the foil becomes exceptionally well-balanced with smooth pitch control, fluid transitions and reactive carving.

KT recommends sizing down 10–20 percent from your usual foil area due to the efficiency and stall resistance of the Atlas profile.

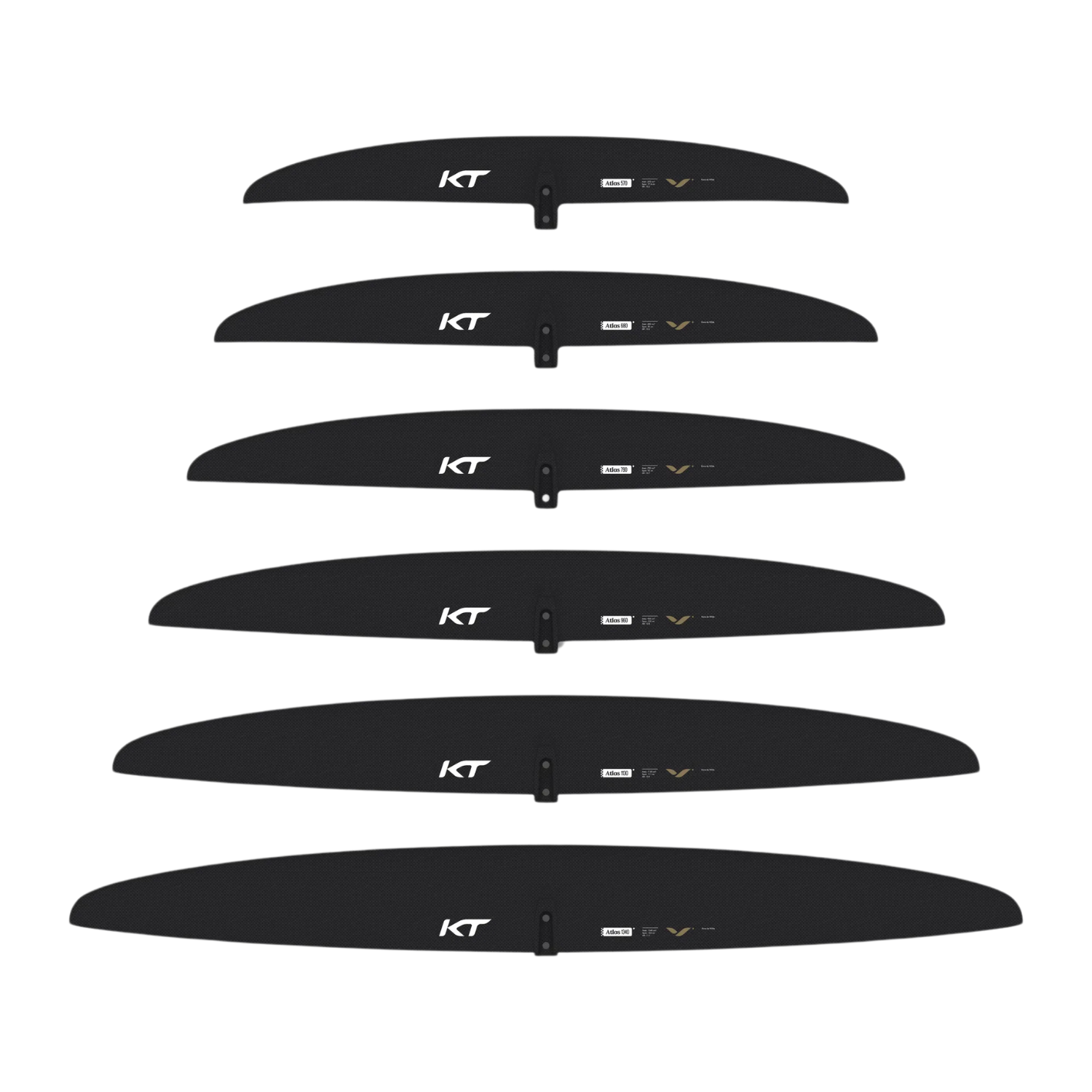

KT Atlas Front Wing Features

• High-camber foil for strong lift and extended glide
• Rear-loaded profile for low drag and smaller required surface area
• Wide usable speed range from slow pumps to powered runs
• Inflected wing tips reduce ventilation during surface breaches
• Smooth, reactive carving with solid control through turns
• Early lift, fast acceleration and excellent pumping efficiency
• Designed for prone, SUP, wing, downwind and tow foiling

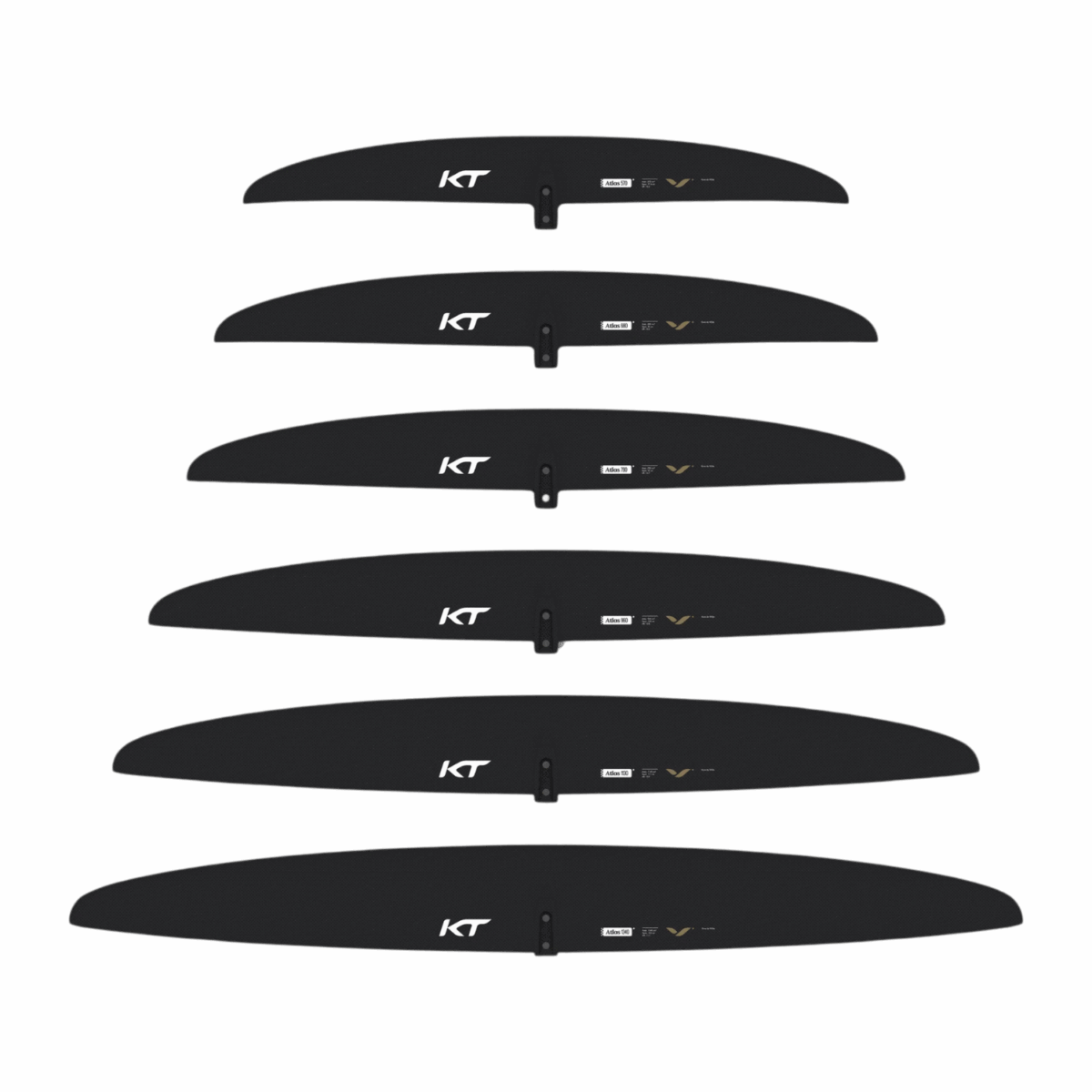

Front Wing Sizes

• 570 cm²
• 680 cm²
• 790 cm²
• 960 cm²
• 1120 cm²
• 1340 cm²

Smaller sizes: tow, high wind, lighter riders, powered winging
Larger sizes: downwind, light wind winging, heavier riders, long-glide surf

KT Atlas Rear Wing (Stabilizer) Features

The Atlas stabilizers are tuned specifically to balance the front wings, providing ideal pitch stability, smooth transitions and a high-efficiency feel at all speeds.

• Lift-balanced outline matched to Atlas front wings
• Excellent pitch stability without excessive drag
• Smooth, fast carving and predictable turning behaviour
• Enhances glide and pumping efficiency
• Supports both high speed and low speed control

Rear Wing Sizes

• 160 cm² – most reactive, best with small fronts
• 180 cm² – balanced all-round stabilizer
• 200 cm² – added stability and glide for bigger fronts

Who This Set Suits

• Intermediate to advanced riders wanting high-efficiency cambered foils
• Surfers wanting speed, long glides and precise carve control
• Wing riders upgrading to a faster, more responsive performance setup
• Downwind riders seeking early lift and excellent low-drag glide
• Anyone ready to step up from beginner foils to a premium, high-performance platform
