Description

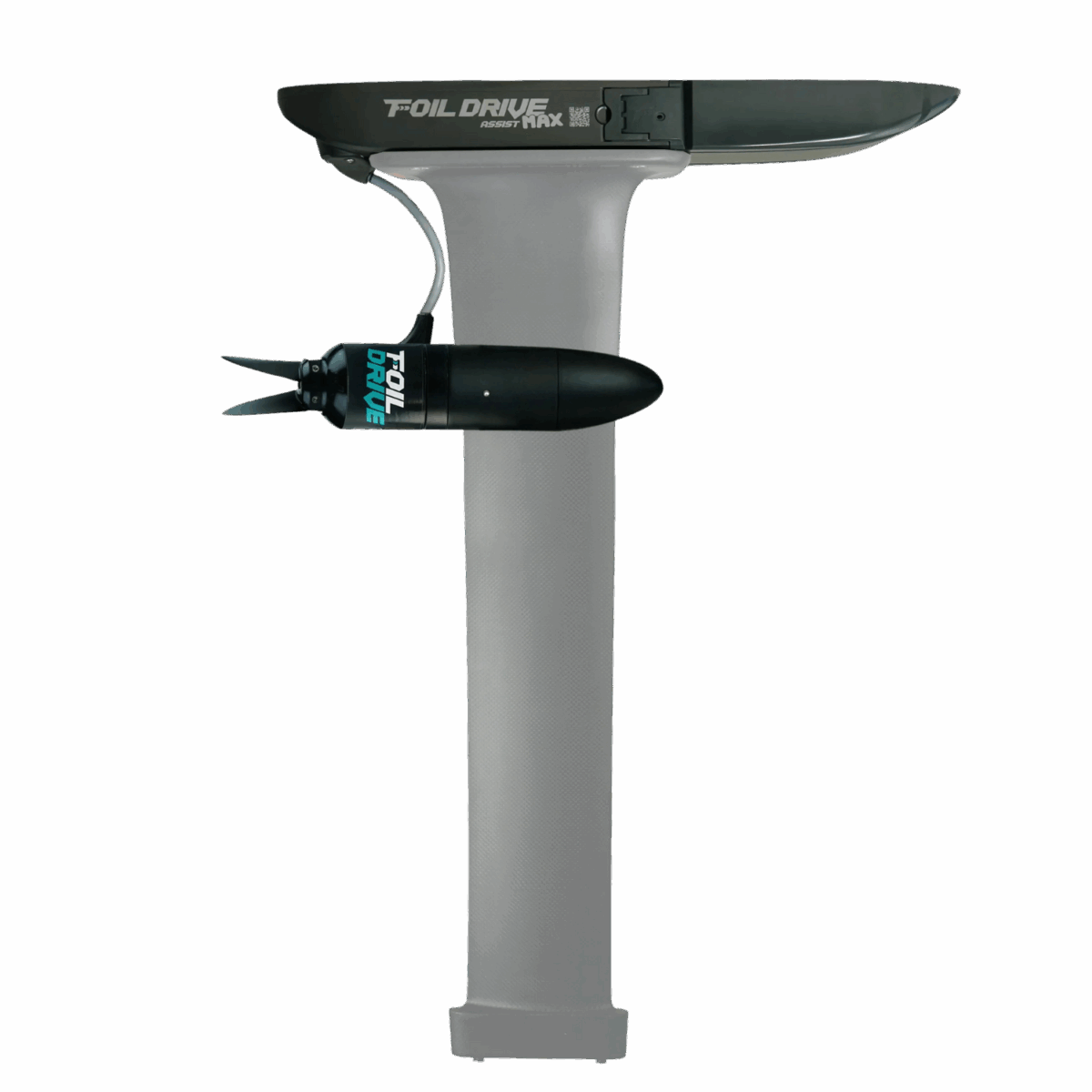

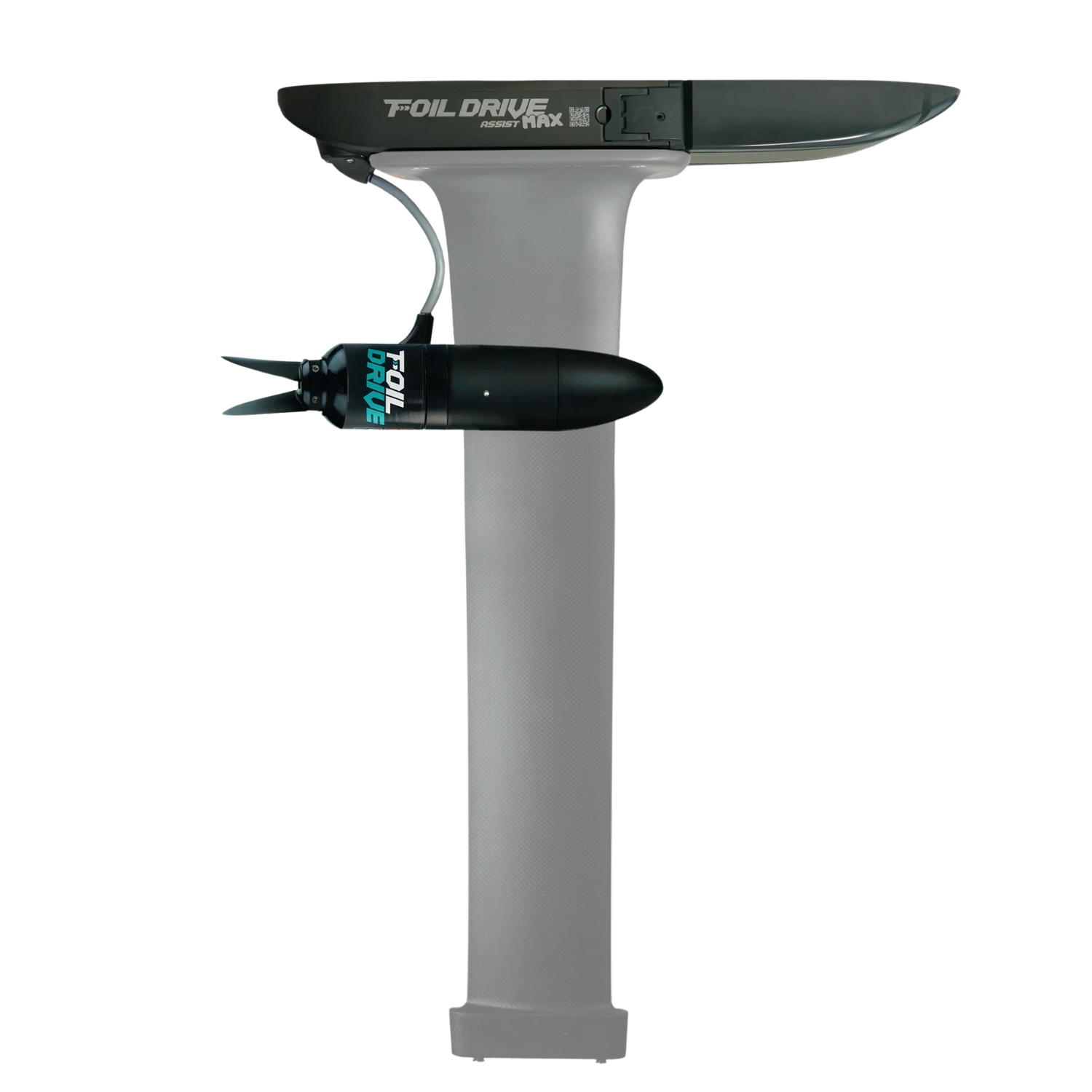

FOIL DRIVE ASSIST MAX
The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine! Simply choose your desired:
- MAX Battery
- Gen2 Motor
UNIVERSAL MAST ADAPTOR NOW INCLUDED!Â
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
*Boards with Carbon Tracks may experience connectivity issues. Foil Drive is working on a solution for this, for more click here. Boards that have been identified include: Armstrong FG, Takuma Rising Sun 2023, Takoon, Core Kites (Unconfirmed), Majek 40L Carbon Fiber Board
Foil Drive | Blue Highway: A Hydrofoil Adventure
WHAT’S INCLUDED
*Choice of Battery with Lipo Bag*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod – Rear
Foil Drive Universal Motor Pod – Short Nose
Foil Drive Universal Motor Pod – Long Nose

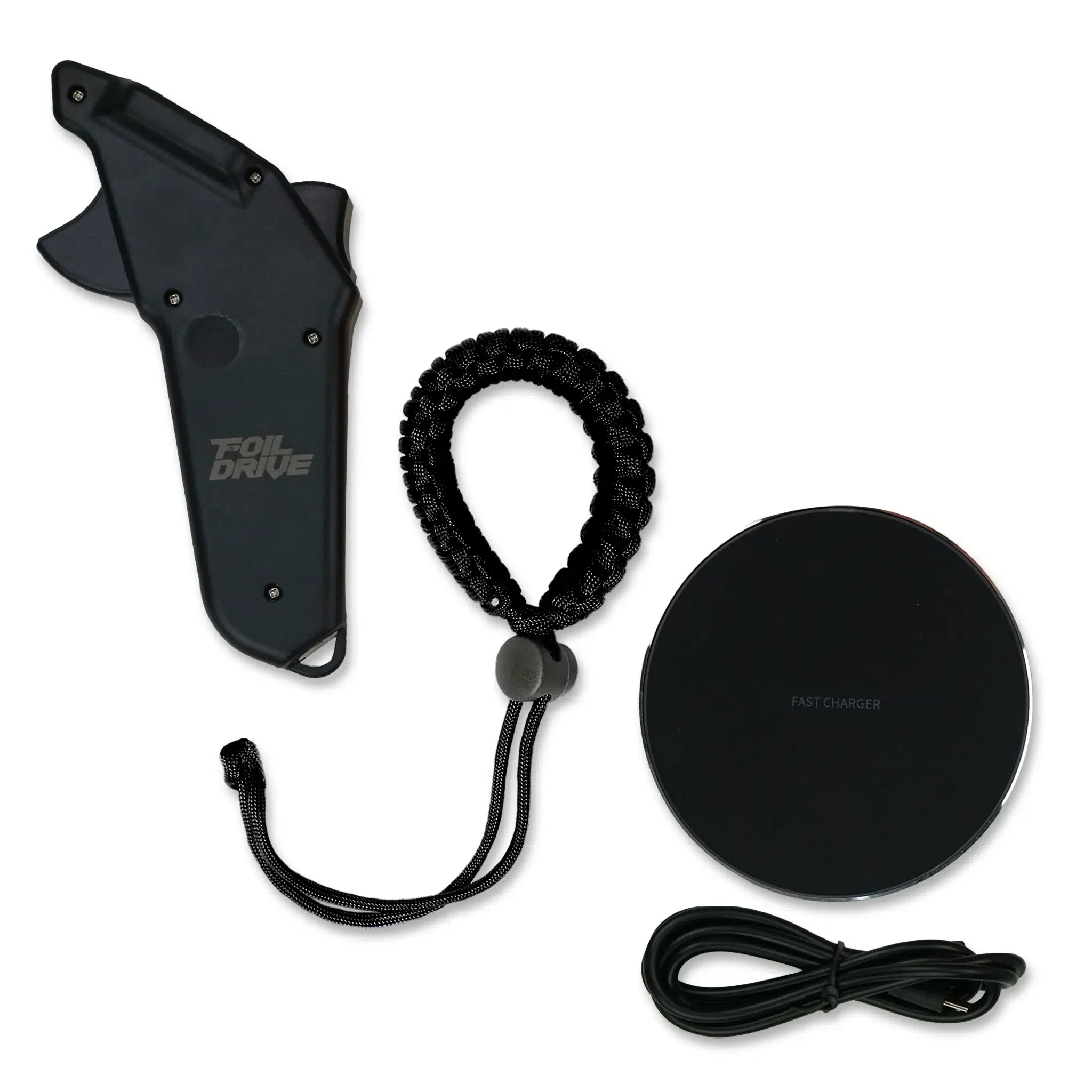

Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
– 4x M8 Locking Tee Nuts
– 4x M6 Locking Tee Nuts
– 4x M3 x 20mm Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag
– 4x Motor Pod Bolts (M3 x 12mm)
– 3x Puck Bolts (M3 x 12mm)
– 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
– 2x O-Ring Seals – Foil Drive Assist MAX
– 2x Latch Assembly – Foil Drive Assist MAX
– 3x Motor Plug Bolts (M4 x 10mm)
– 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
– 4x Latch Locking Bolts (M3 x 16mm)
– 2x Propeller Bolts (M3 x 30mm)
– 2x Latch Pivot Bolts (M3 x 45mm)
COMPATIBLE WITH
- MAX Power Battery
- MAX Sport Battery
- Universal Motor Systems for Gen2
- Project Cedrus Integrated Mast for Gen2
- AXIS Integrated Mast for Gen2
TECH SPECS
- Max Thrust:Â 27.5kg (60.6lbs)
- Weight Range:Â 3.4-4.5kg (7.4-9.9lbs)
- Dimensions with Long A Nose Cone:Â L525 x W125 x H50mm
- Dimensions with Short B Nose Cone:Â L415 x W250xH50mm
- App compatibility:Â Foil Drive app, Android and IOS
